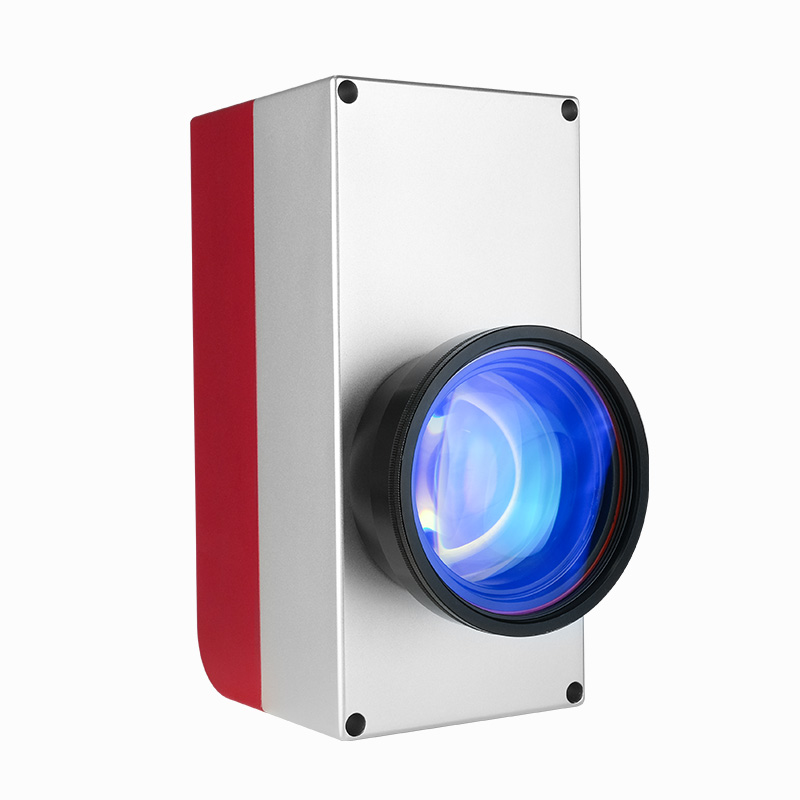

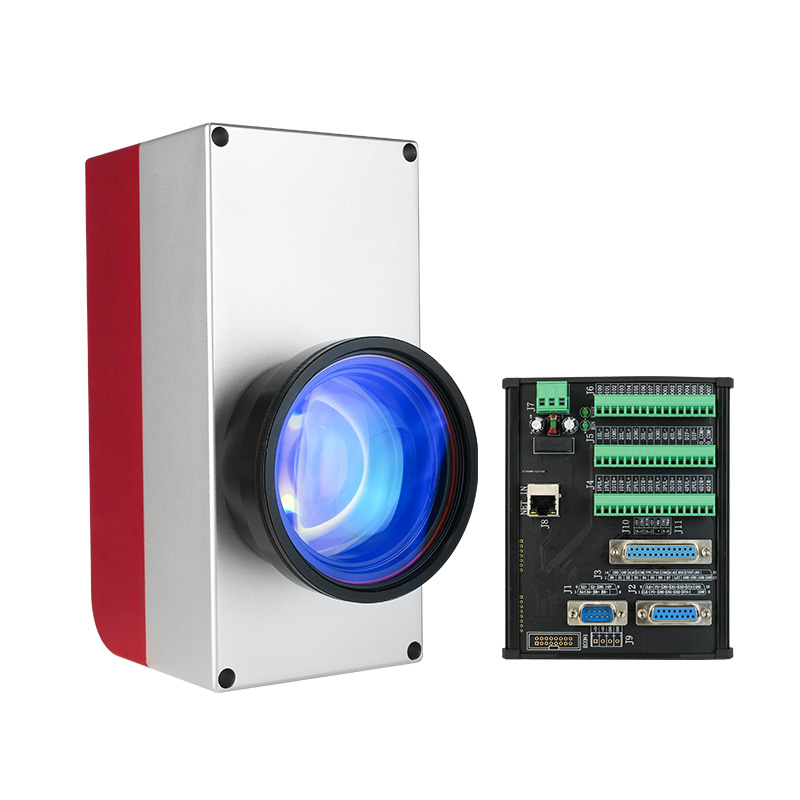

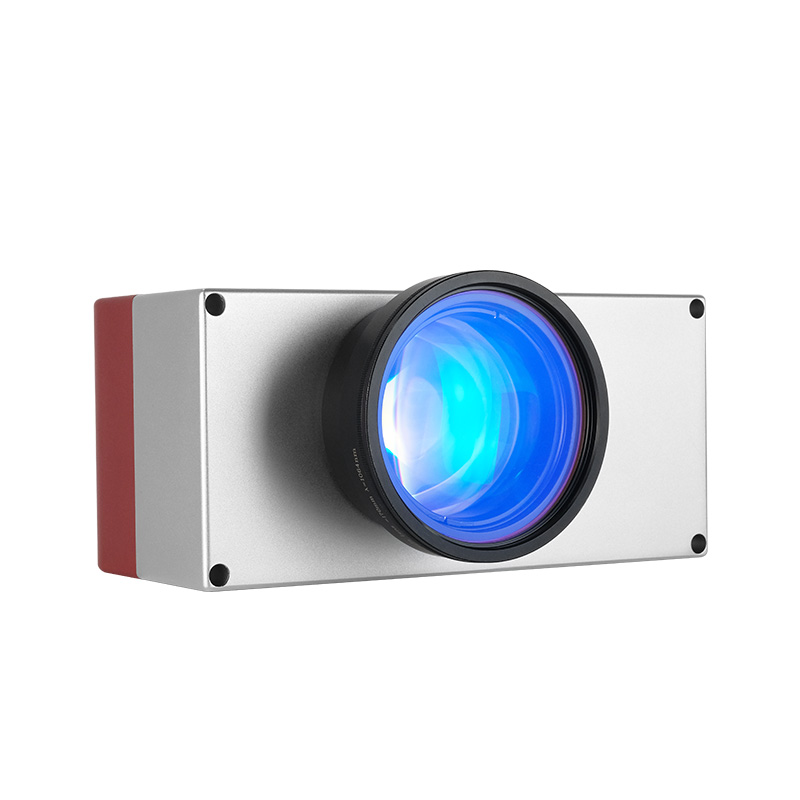

14mm Glass drilling 3D galvo scanner GD3D-1064-14A

ZBTK glass drilling solution compared with the traditional contact mechanical drilling method, it has the advantages of low processing scrap rate, being able to cut special-shaped holes, fast processing speed, high precision, good stability, flexible processing method, etc. It can replace the traditional glass processing technology and is widely used in panel glass, home appliance glass, display glass, optical glass, photoelectric glass, photovoltaic glass and other industries.
Leave Word
15814095961
Detail


Product Parameters


Applicable laser

Solid state infrared

Incident spot

<9mm

Borehole size

90mm

Glass thickness

<15mm

Collapse size

nanosecond:≤200um

picosecond:≤20um

femtosecondNear collapse free edge

Applicable glass types

many

Expandable axis

4-axis

Scan angle

±0.35rad

Power supply

±15V/10A

Operating temperature

25±10()

Weight (kg)

4.8
