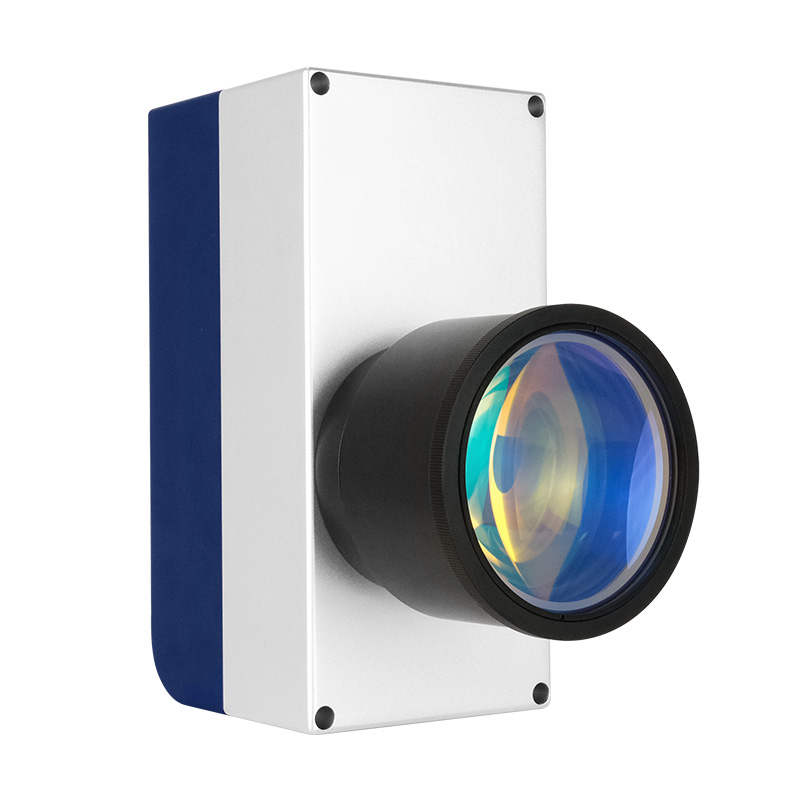

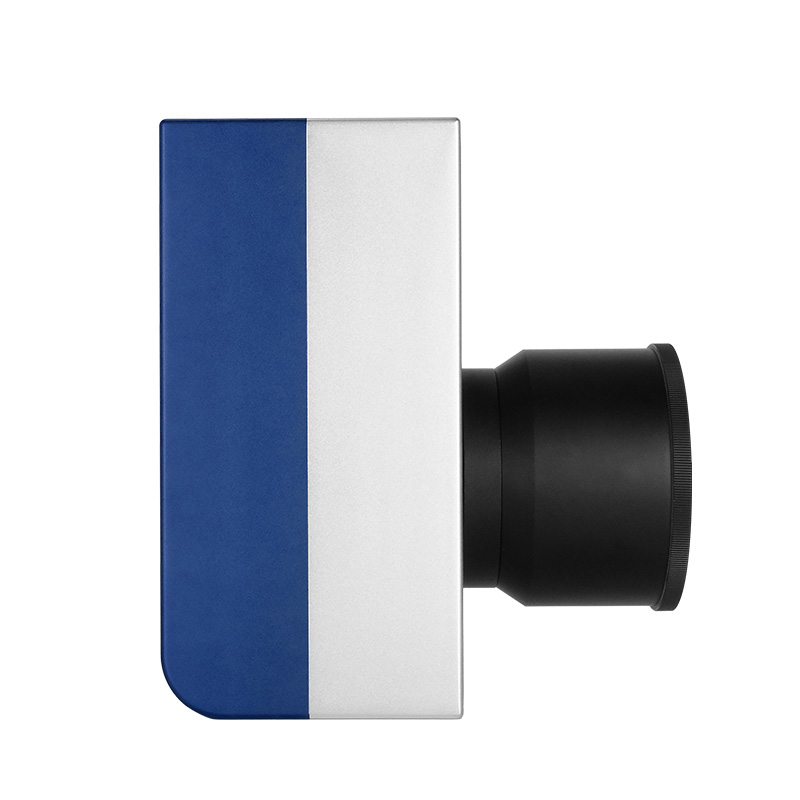

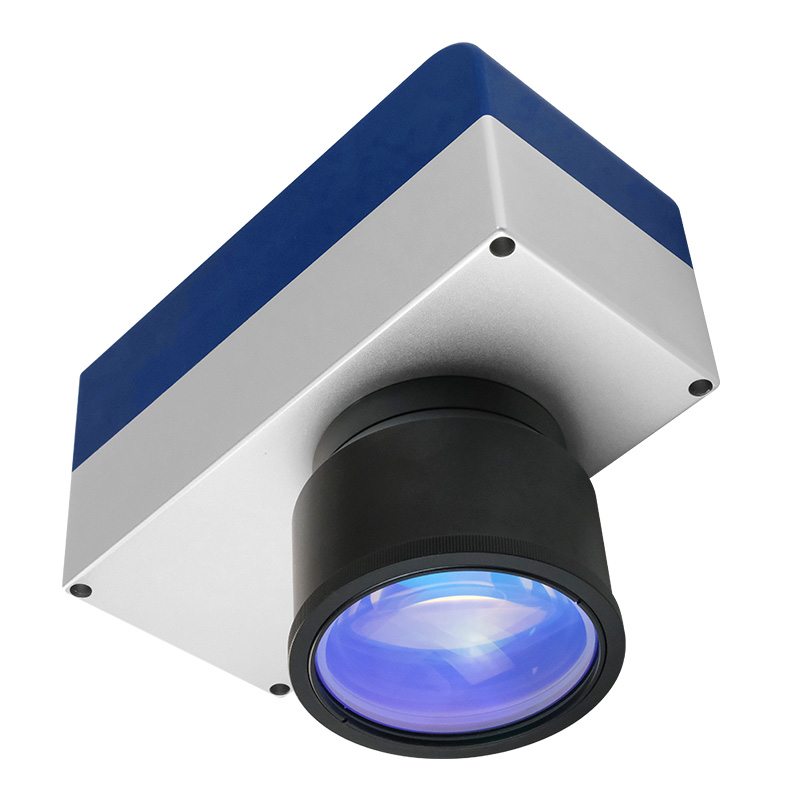

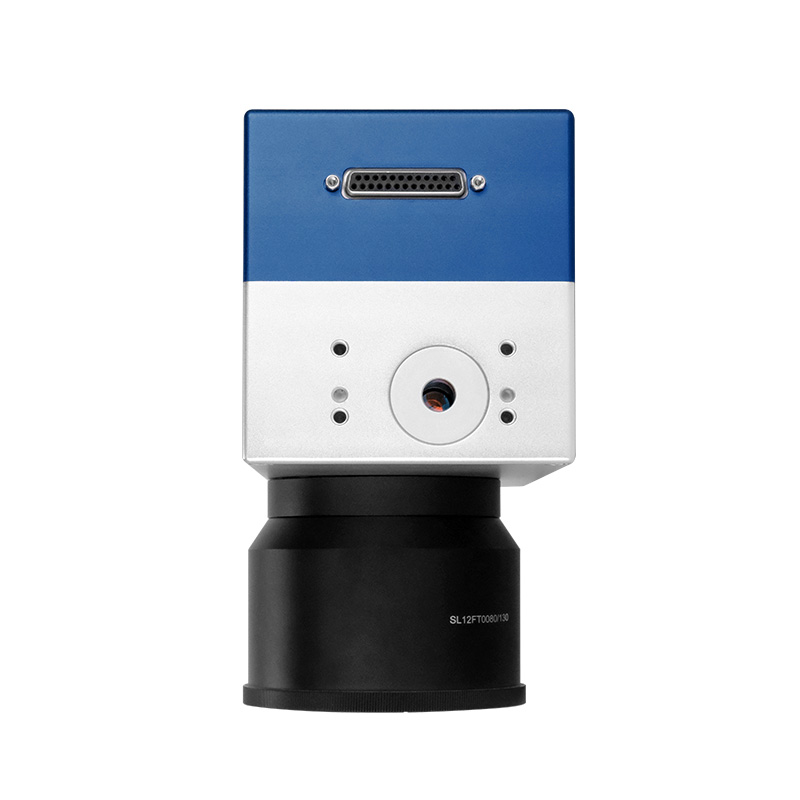

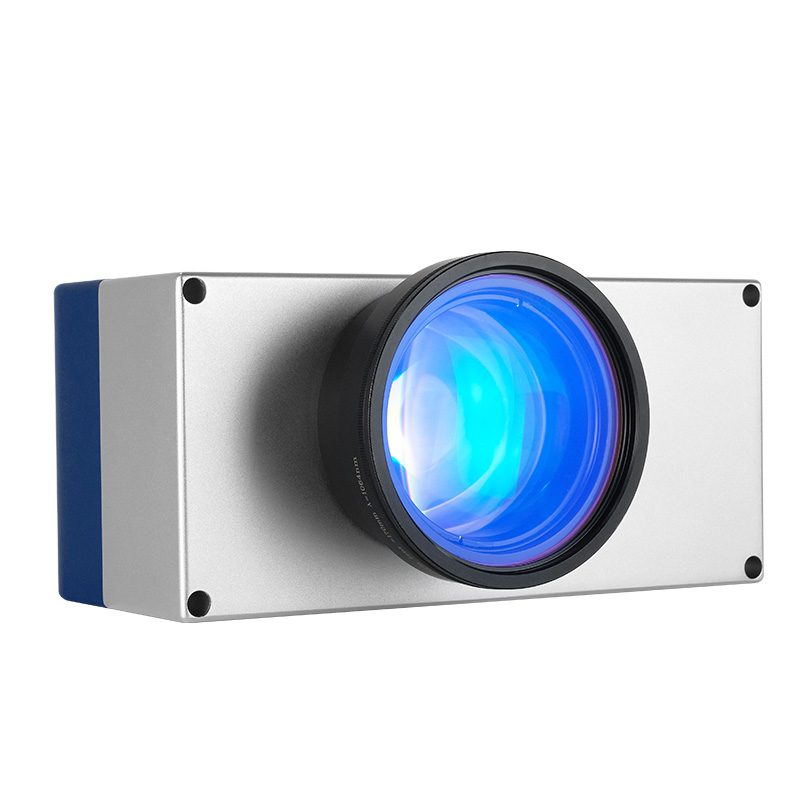

14mm Curved 3D galvo scanner ZB3D14A1064

The post focusing 3D scanning galvo scanner can be widely used in high-end processing fields such as laser precision marking, laser relief, laser deep carving, laser cutting, laser welding, etc. for multi-level surfaces, inclined surfaces, cylindrical surfaces, spherical surfaces,and complex 3D morphology surfaces.
Leave Word
15814095961
Detail

Product advantages

● Integration

Highly integrated with high-end two-dimensional scanning galvo scanner, high-speed dynamic focusing unit, optical lens group, rear focusing F-theta field mirror, etc., it has a compact and stable structure, precise optical path, good sealing, exquisite appearance, and convenient installation.

● High stability

Adopting a sealed shielding structure and multi-level anti-interference protection circuit, it has strong anti-interference ability.

● High precision

Adopting advanced closed-loop PID algorithm, 16 bit control resolution, high control accuracy, and fine machining effect.

● High linearity

Adopting unique linearity compensation technology, it has good linearity throughout the entire large format marking range..

● Low-temperature bleaching

Adopting high-precision photoelectric sensor technology and advanced temperature drift automatic compensation technology,it has minimal zero temperature drift, gain temperature drift, and long-term working temperature drift.




Product parameters

Laser wavelength

355nm / 532nm / 1064nm

Incident spot diameter

6mm / 7mm

Input aperture

14mm

Working area

According to the selection of field lens

Z-axis focal depth

±30mm @F160Field lens；±40mm @F254Field lens

Tracking error time

0.2ms

Max positioning speed

75rad/s

Repeatability (RMS)

4urad

Gain drift

50ppm/K

Zero drift

30urad/K

Long-term drift over 8 hours

<0.1mrad

Power supply

±15VDC / 10A

Signal protocol

XY2-100

Dimension

230x108x116 mm

Weight

4.32 kg

Operating temperature

25°C ±10°C

Storage temperature

–10°C ~ 60°C

Storage humidity

≤75% Non-condensing
